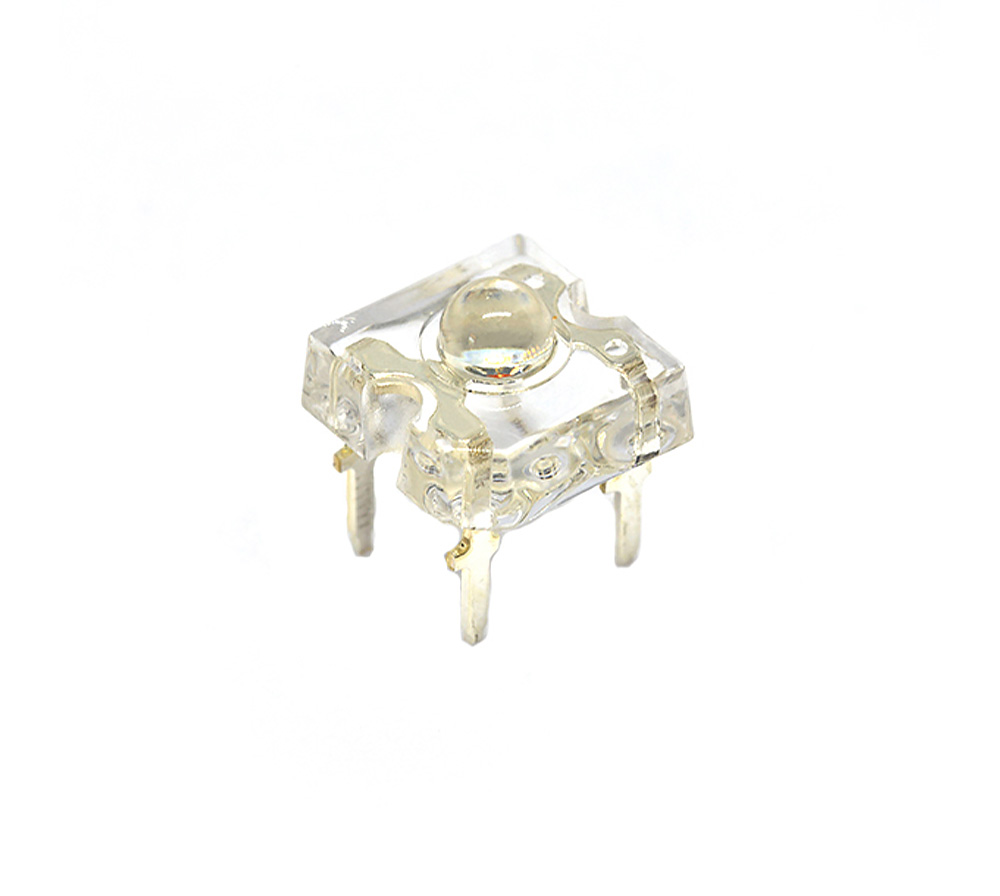

3MM 1.9 High

Type: Piranha
Specification:3MM(1.9 High)
Power:0.06W、0.1W、0.2W、0.5W
Chip brand: Epistar
Beam angle:40°50°60°70°
Luminous color: red/yellow/blue/green/orange/warm white/positive white/cool white/white to yellow/white to red/pink/ice blue

Application:
Products are widely used in indoor and outdoor lighting products such as turn signals, brake lights, warning lights, stage lights, line lights, wall washers, etc.

Product Description

ModelColorWave band(nm)Brightness(mcd)Voltage(vf)Angle(deg)Electric current(mA)
3MM Piranha(1.9 High)Red Light620-6801500-35001.8-2.350°20mA
Green Light515-5302000-40002.8-3.2
Blue Light460-4701000-20002.8-3.2
Yellow Light588-5951500-35001.8-2.3
Orange Light600-6101500-35001.8-2.3
Purple Light360-405100-2003.0-3.4
True White5500-7500K3000-70003.0-3.4
Cold White75000-25000K3000-70003.0-3.4
Warm White2000-4500K2000-50003.0-3.4
White to Yellow1600-2000K2000-50003.0-3.4
White to Red618-6231500-25003.0-3.4

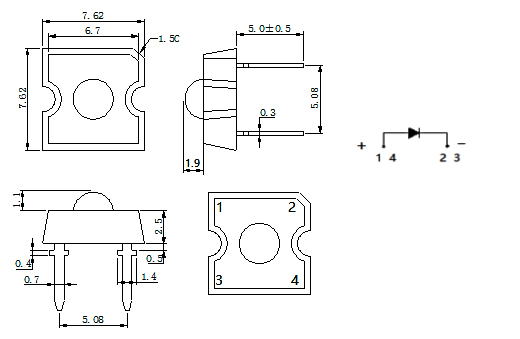

Product Size:
3MM 1
