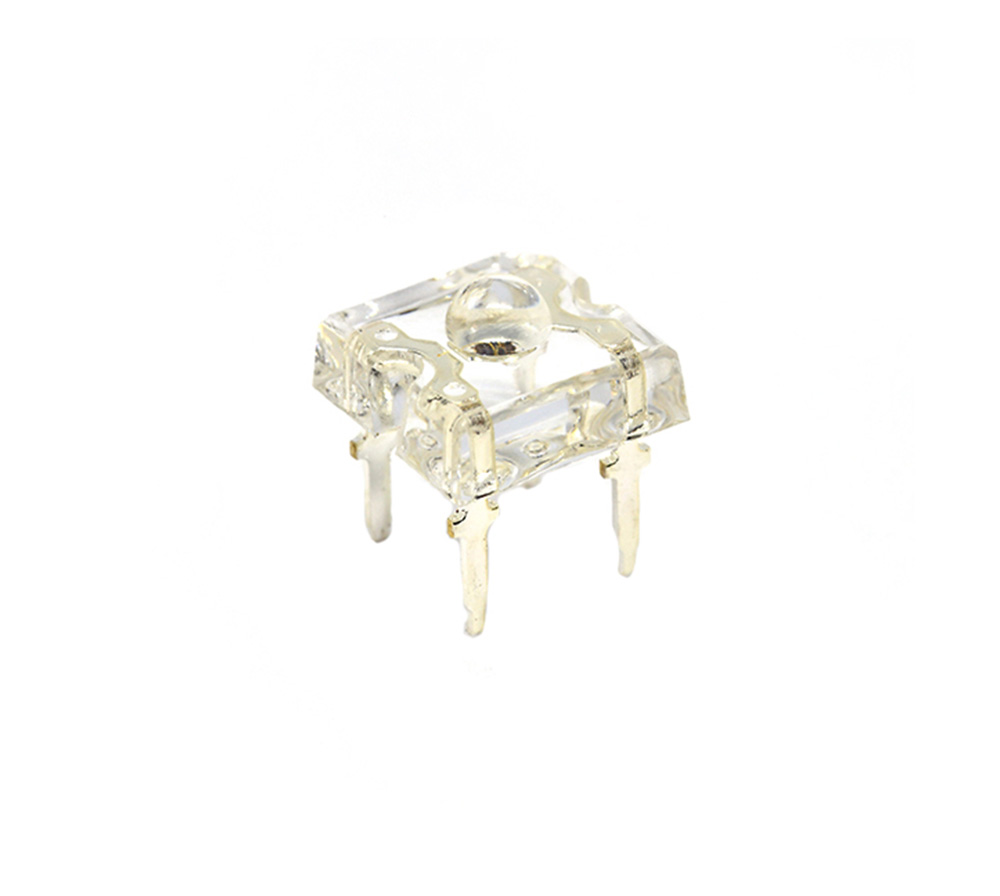

3MM 1.1 High

Type: Piranha
Specification:3MM (1.1 High)
Power:0.06W、0.1W、0.2W、0.5W
Chip brand: Epistar
Beam angle:80°90°110°
Luminous color: red/yellow/blue/green/orange/warm white/positive white/cool white/white to yellow/white to red/pink/ice blue

Product Description

ModelColorWave band(nm)Brightness(mcd)Voltage(vf)Angle(deg)Electric current(mA)
3MM Piranha (1.1 High)Red Light620-6801000-30001.8-2.390°20mA
Green Light515-5302000-40002.8-3.2
Blue Light460-4701000-20002.8-3.2
Yellow Light588-5951000-30001.8-2.3
Orange Light600-6101000-30001.8-2.3
Purple Light360-40550-1503.0-3.4
True White5500-7500K2500-45003.0-3.4
Cold White75000-25000K2500-45003.0-3.4
Warm White2000-4500K2000-40003.0-3.4
White to Yellow1600-2000K2000-40003.0-3.4
White to Red618-6231000-30003.0-3.4

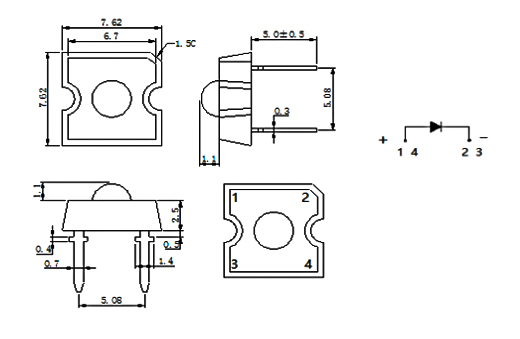

Product Size:
3MM 1
