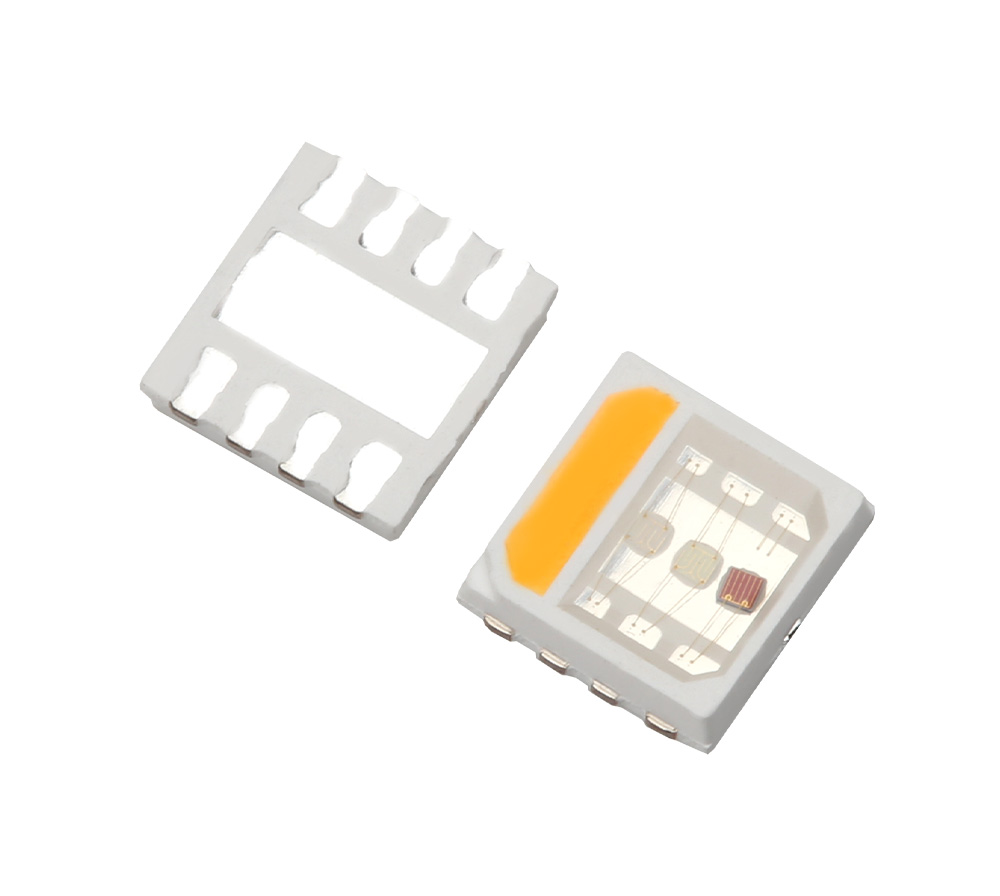

5054RGBW

Features:
1. Using Sanan, epistar chip package
2. 99.99% gold wire welding
3. Chip package, good heat dissipation
4. Good spot, high brightness

Product Description

Product numberPowerColorColor temperature/wavelengthVoltageElectric currentLuminous flux
5050RGBW0.8WRed light620-625nm2.0-2.2V60mA8-11LM
Green light520-530nm3.0-3.2V60mA15-20LM
Blue light460-470nm3.0-3.2V60mA3-4LM
White light3000-6000K3.0-3.2V60mA22-24lm
2WRed light620-625nm2.0-2.2V150mA18-20lm
Green light520-530nm3.0-3.2V150mA40-45lm
Blue light460-470nm3.0-3.2V150mA10-12lm
White light3000-6000K3.0-3.2V150mA50-55lm
4WRed light620-625nm2.0-2.2V300mA40-45LM
Green light520-530nm3.0-3.2V300mA65-70LM
Blue light460-470nm3.0-3.2V300mA20-22LM
White light3000-6000K3.0-3.2V300mA100-100lm

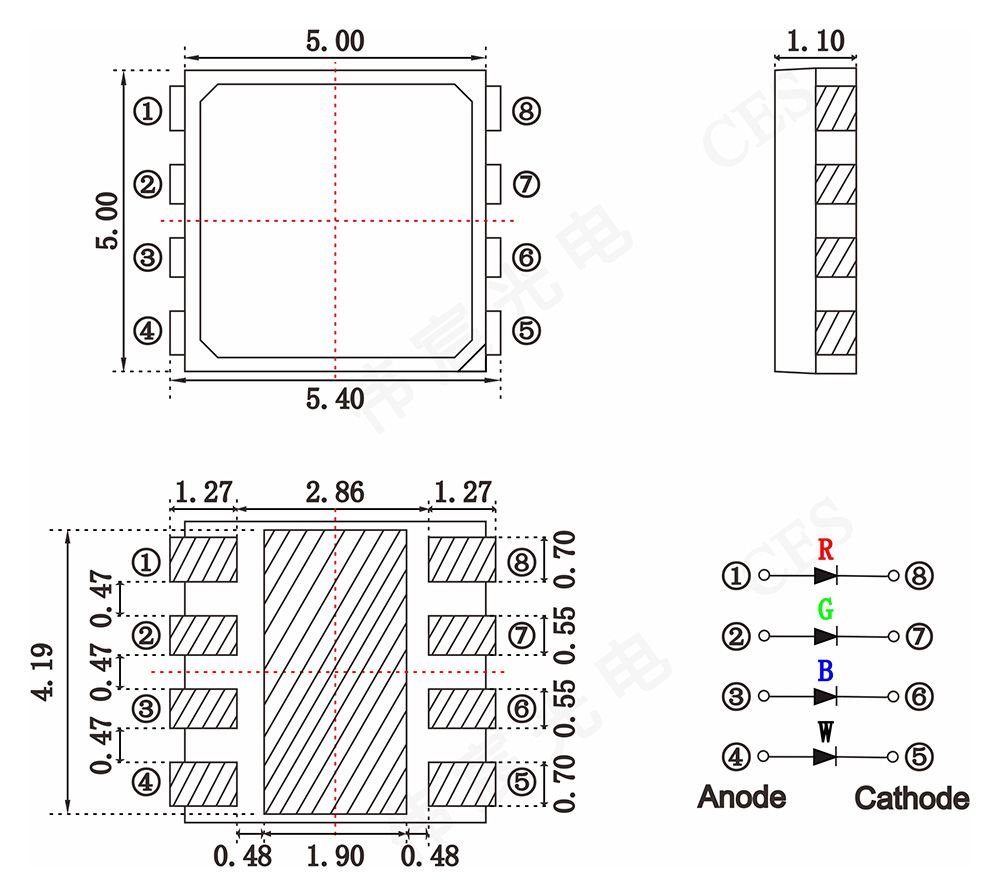

Product Size:
5054RGBW-缺口为负为蓝光-中间独立散热片--规格书焊盘图-2022
